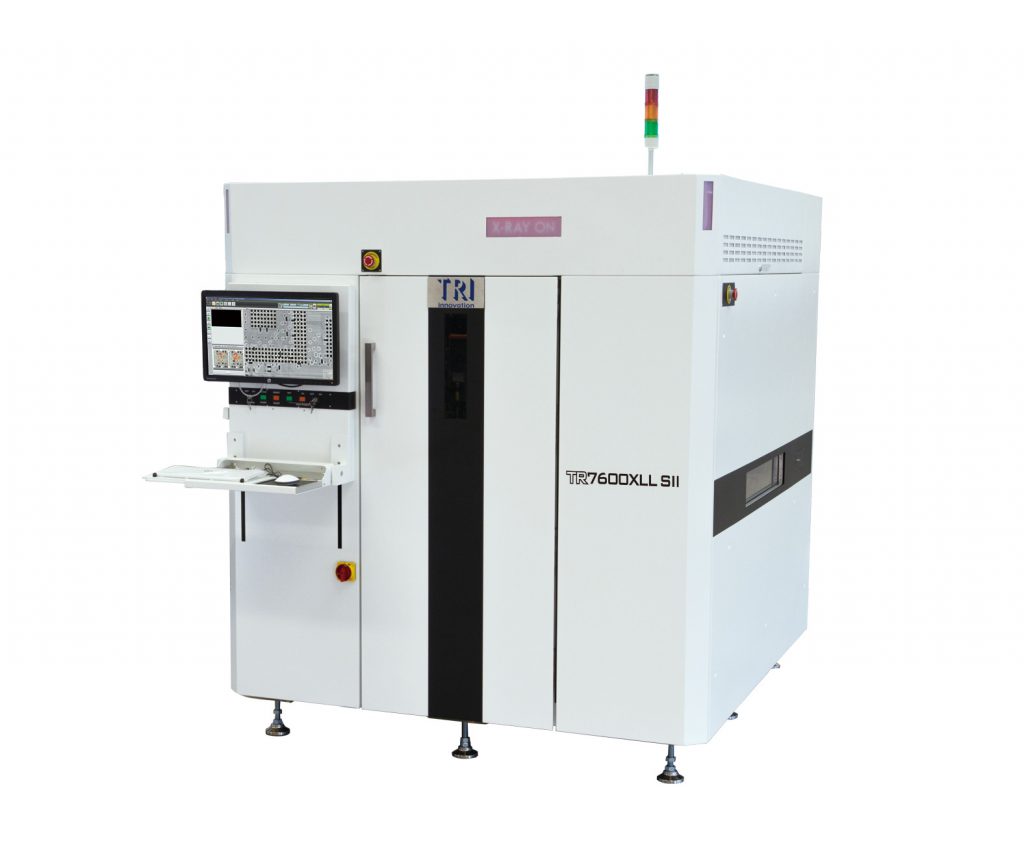

Automated X-ray Inspection (AXI) – TR7600XLL SII


TR7600XLL SII is high performance and high speed 3D AXI for the largest server, networking and power PCBs. The TR7600XLL SII systems uses TRI’s unique shadow-free technology to inspect multi-layer boards with 2/3-layer PoPs, µBGAs, QFNs and Press-fit connectors. Smart programming assistants and multi-resolution programs help maximize production yields on any production line.
  • Features

    • Very Large board edge to edge inspection up to 1000 mm x 660 mm
    • Automated programming saves hours of engineer workload
    • Multi resolution programs and advanced processing for superior image quality
    • Automatic 2D + 3D slice image extraction using Digital Tomosynthesis
    • X-ray tube with adjustable output up to 130 kV/300 µA
