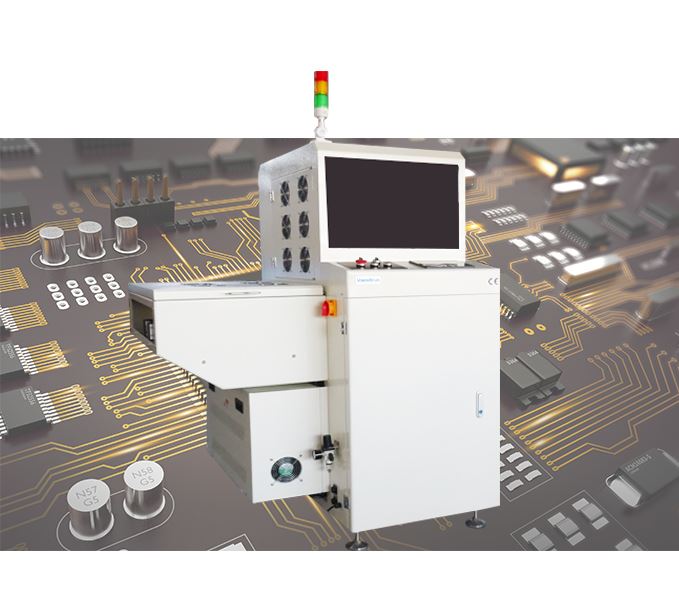

Vanstron – Vertical Cooling buffer ( FIFO,LIFO,BY-PASS)

Vanstron – PCB HANDLING EQUIPMENT – Vertical Cooling buffer ( FIFO,LIFO,BY-PASS)

Product Introduction

This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions, which can be located between SMT machines to improve the working efficiency by buffering.The system is available to carry on with the FIFO ( First in first out) or LIFO ( Last in first out) under the programming time mode; Cooling fan with programmable cooling time. This vertical cooling buffer is very good to put it after the reflow oven as a cooling buffer.

Key features：
PCB buffer capacity: 25 PCS
Working mode:
    FIFO( first in first out)
    LIFO( last in first out)
    By-pass mode;

  1.  Control method: PLC+ touch screen control+Taiwan servo motor
  2.  Machine working language: English
  3.  Threshold signal to protect the boards in upstream reflow oven: Standard
  4.  PCB transfer method: 4mm ESD Flat belt to handle PCB
  5.  Magazine lifting system: precision servo motor system and servo driving system.
  6.  Lifting platform with PCBs weights handling capacity: above 100kg
  7.  Step pitch selectable: 1/2/3 pitch Step by software setting;
  8.  PCB size available: 500mm * 460mm ( L*W) as Max.
  9.  Indexing pitch: 22mm
  10.  PCB transfer flow direction: Left to right
  11.  Conveyor width adjustment: motorized type
  12.  Conveyor fixed rail: Front rail
  13.  Conveyor transfer heights: 900mm+/-50mm
  14.  Conveyor speed: 10m/min adjustable
  15.  Conveyor rail material: aluminum with special hardness treatment for long time usage and the strong PCB holding ability;
  16.  Machine working state display: LED signal tower + audible alarm
  17.  Robust lead screw rod and guide line rod to guarantee the heavy duty loading;
  18.  Safety standard: CE certificates
  19.  Safety cover with interlock functions
  20.  Power: AC220V,50/60 HZ, 1 phase
  21.  Air Pressure: 4-5kgf/cm2
  22.  Machine communication: SMEMA interface
  23.  Certificates : CE

Optional

  1. Cooling fan with programmable cooling time.
  2. The machine is available to be equipped with cooling fans installed on the frame of PCB rack position and it is available to program the cooling time which is setup for the each boards staying on the buffer Rack. When the time is reached the setting time, the board is available to be released to downstream machine once the downstream is ready to receive. ( Optional)

Infeed conveyor

  1.  As a linking conveyor attached on the buffer main machine.
  2.  Chain conveyor transfer
  3.  Independent speed controller
  4.  PCB components available: top 80mm, bottom 70mm
  5.  Be good for PCB or PCB with pallets
  6.  Conveyor width adjustment: motorized type
